BIA 101 BIVA®PRO

New look, unmatched performance

BIA 101 BIVA® PRO comes with a completely redesigned case, designed to enhance the user experience. The new design combines modern aesthetics with improved ergonomics, making it easier to use both in the clinic and in the field.

Battery optimisation and a new design make the BIA 101 BIVA® PRO an even more efficient and functional device, enhancing performance and reliability.

The advanced bioimpedance system for body composition analysis

The advanced bioimpedance system for body composition analysis

  • Explanatory icon
    INNOVATIVE AND ERGONOMIC

    The new proprietary case of the BIA 101 BIVA® PRO has been designed to ensure an optimal user experience, combining ergonomics and practicality.

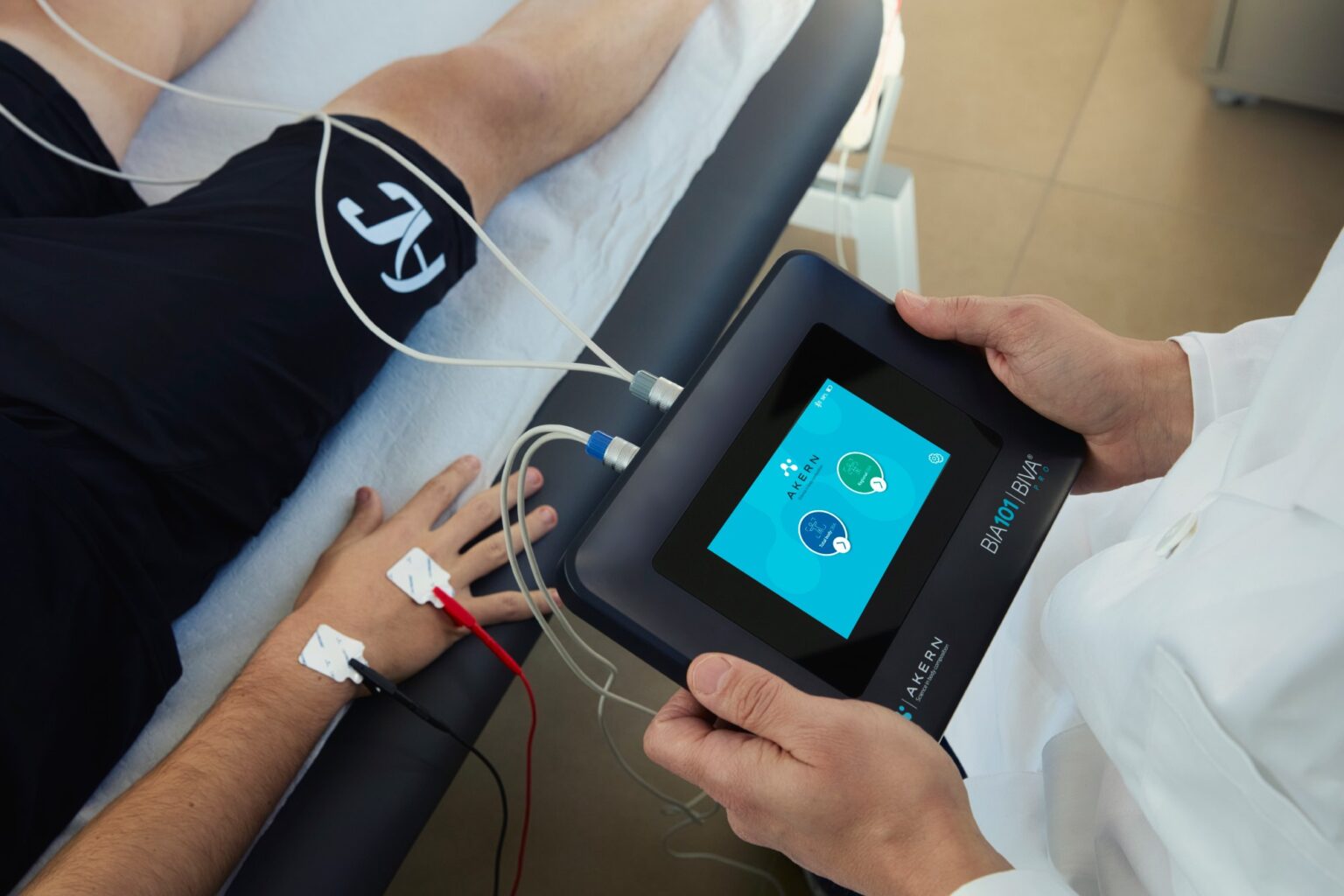

    Its ergonomics facilitate safe use both in the clinic and in the field.

    The modern, professional design reflects AKERN®’s commitment to technological innovation, offering an instrument that combines precision, reliability and functional aesthetics that can be integrated into various application areas.

  • Explanatory icon
    PERFORMANCE

    Thanks to an advanced battery management system, the BIA 101 BIVA® PRO recharges faster in about 2 hours, providing up to 5 hours of continuous use. This allows up to 200 measurements to be taken on a single charge.

  • Explanatory icon
    Reliable

    The SIGNAL QUALITY INDEX (SQI) function allows the user to dynamically measure the quality of the electrical signal during measurement with BIA, based on five parameters related to the signal itself, namely: stability, variability, oscillation, drift, and motion. SQI is visualized on the screen by means of 6 stars, and the user, together with the patient’s objective examination, evaluates whether the signal quality is satisfactory in order to confirm, or not, the measurement.

  • Explanatory icon
    Scalable

    BIA 101 BIVA® PRO combines two measurement configurations: TOTAL BIA for full body analysis using standard tetrapolar technique & REGIONAL BIA assessment of single anatomical regions.

  • Explanatory icon
    Versatile

    BIA 101 BIVA® PRO offers 2 different working modalities: either for outpatient or fieldwork practice, to allow all operating situations, with the confidence of a high-capacity database capable of recording up to 150 analyses, and a battery charge of up to 200 measurements.

  • Explanatory icon
    Safe

    BIA 101 BIVA® PRO is a Class IIa CE Medical Device, tested for safe measurements on children, pregnant women and patients carrying implantable medical devices or prostheses.

An unmatchable partner across many fields of application

  • Explanatory icon
    HOSPITAL NUTRITION

    Evaluation of variations in body composition during weight loss and special dietary regimes.

  • Explanatory icon
    SPORT E FITNESS

    Evaluation of body composition and follow-up of fitness programmes.

  • Explanatory icon
    Prevention

    Assessment of muscle decline and hydro-electrolyte alterations in the elderly and frail patient.

  • Explanatory icon
    Paediatrics

    Evaluation and follow-up of height-for-age, weight-for-age development in children.

  • Explanatory icon
    Pregancy

    Evolution and control of nutritional and hydration status during pregnancy.


Technical specifications

  • Device classification
    Medical Device Class IIa- MDR2017/745 (under certification)
  • Data on the display
    BIA Total Analysis:
    RESISTANCE (Rz) REACTANCE (Xc), Phase Angle (PhA), Total body
    BIA Regional Analysis
    RESISTANCE (Rz), REACTANCE (Xc), Phase Angle of 10 separate anatomical regions
  • Measurement method
    Total Body BIA Analysis, Regional BIA Analysis
  • Display
    5-inch capacitive touch-screen
  • Battery charge duration
    5 hours in continuous use (up to 200 measurements, depending on conditions of use), real-time display of battery charge and charging status
  • Lightweitght ergonomic design
    600 g, dimensions 20x20.5x 6 cm
  • Measuring current
    245 μA
  • Frequency
    50 kHz ±1%
  • Resolution and accuracy
    RESISTANCE (Rz): Resolution 0.1 Ohm - Accuracy 1%
    REACTANCE (Xc): Resolution 0.1 Ohm - Accuracy 1%
  • Data trasmission on the PC
    Bluetooth 4.0 communication protocol - USB
  • Auto-test
    The device self-tests its calibration against internal standard impedances and checks battery charge and other system functions at each start-up
  • Safety alarms
    Infographics and error codes activated automatically when necessary
  • Bioelectric data quality index
    During BIA measurement, the Signal Quality Index (SQI) function allows the quality of the recorded bioelectric signal to be ranked dynamically and continuously
  • Age range
    3-99 years
  • Database
    Up to 150 records
  • Software
    BODYGRAM® DASHBOARD for Total BIA analyses
    BODYGRAM® DASHBOARD + Regional App for Regional BIA analyses
    BODYGRAM® HBO software interface for Hospitals and Universities
